Custom Tensile Telescope Dome Cover for ISRO, Udaipur

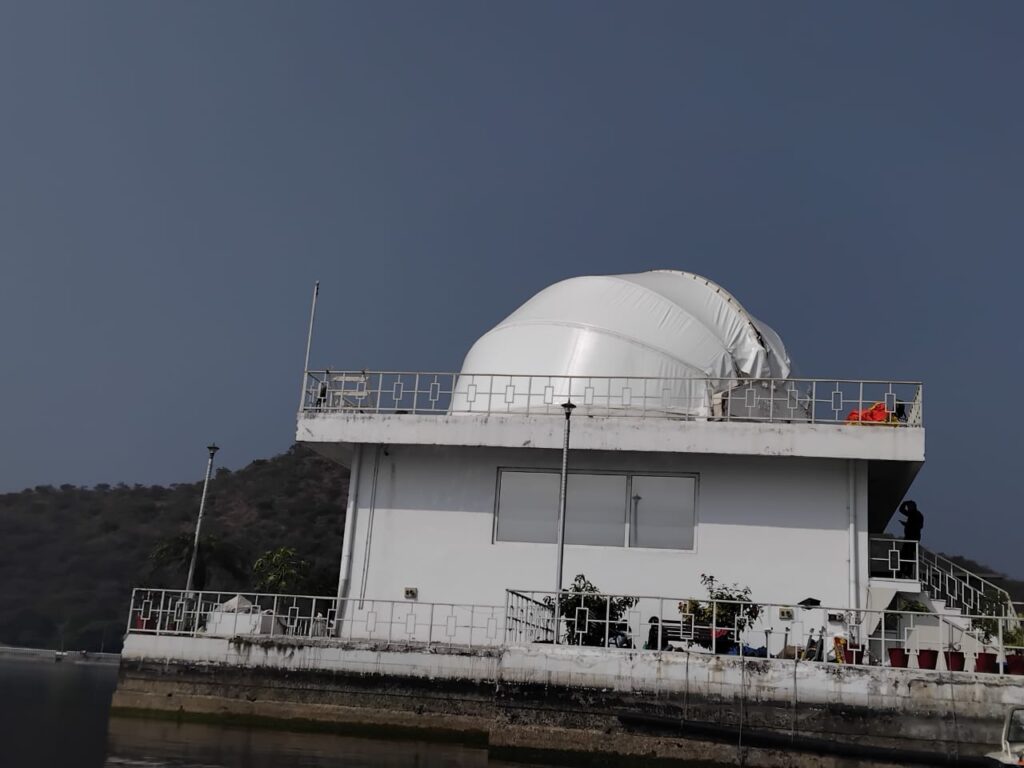

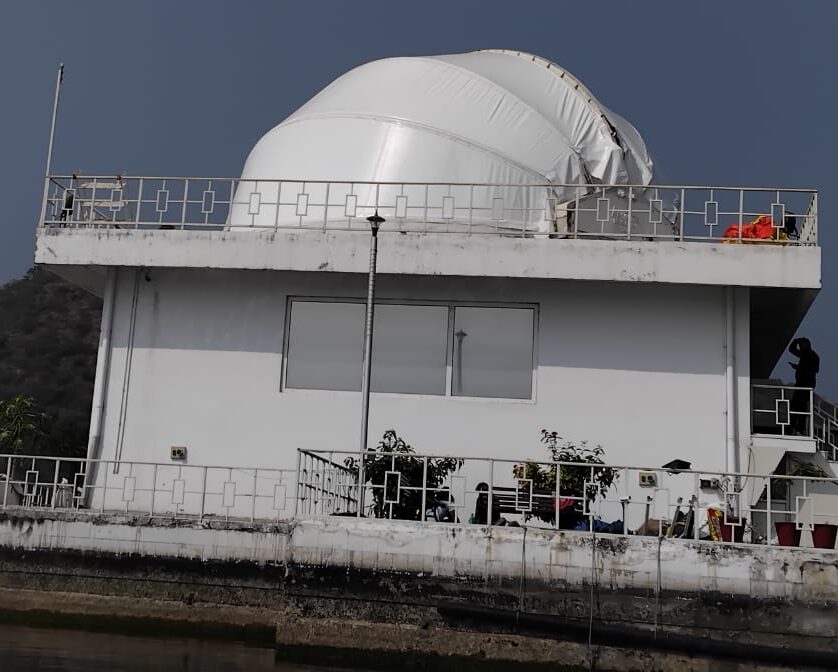

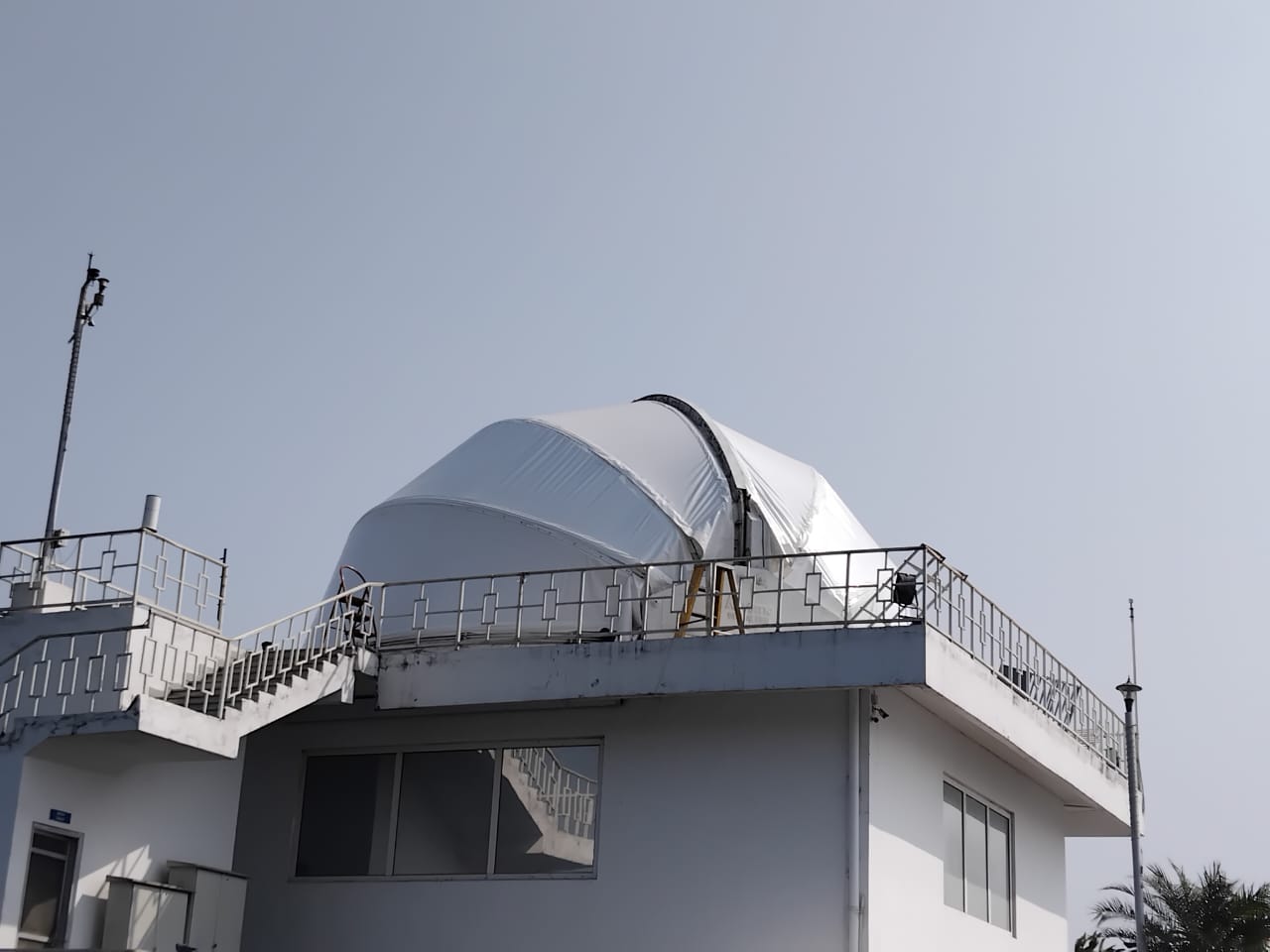

Engineering specialized fabric membranes for scientific hubs demands extreme care. For the solar observatory in Udaipur, Schafbock Design + Workshop delivered a bespoke telescope dome cover. This facility operates under the Physical Research Laboratory and ISRO. Therefore, our team built a structure to shield delicate optical tools from tough atmospheric exposure.
Operating on an island creates unique weather challenges. For example, high solar heat, strong humidity, and lake-effect thermal shifts affect the site. In response, our engineers created an aerodynamic enclosure system. As a result, the cover protects the tracking setup without blocking dome movement.
Precision Engineering & Performance Demands
A reliable telescope dome cover must maintain thermal balance. In addition, it must stop internal air currents that distort sky views. We solved these needs with careful material choices and tension geometry:
- Solar Heat Control: We used technical membranes with high solar reflectance. Consequently, this lowers passive heat gain around sensitive instruments.
- Wind Load Dynamics: We shaped the form using 3D finite element analysis. Thus, the structure handles turbulent winds up to 45 m/s with ease.

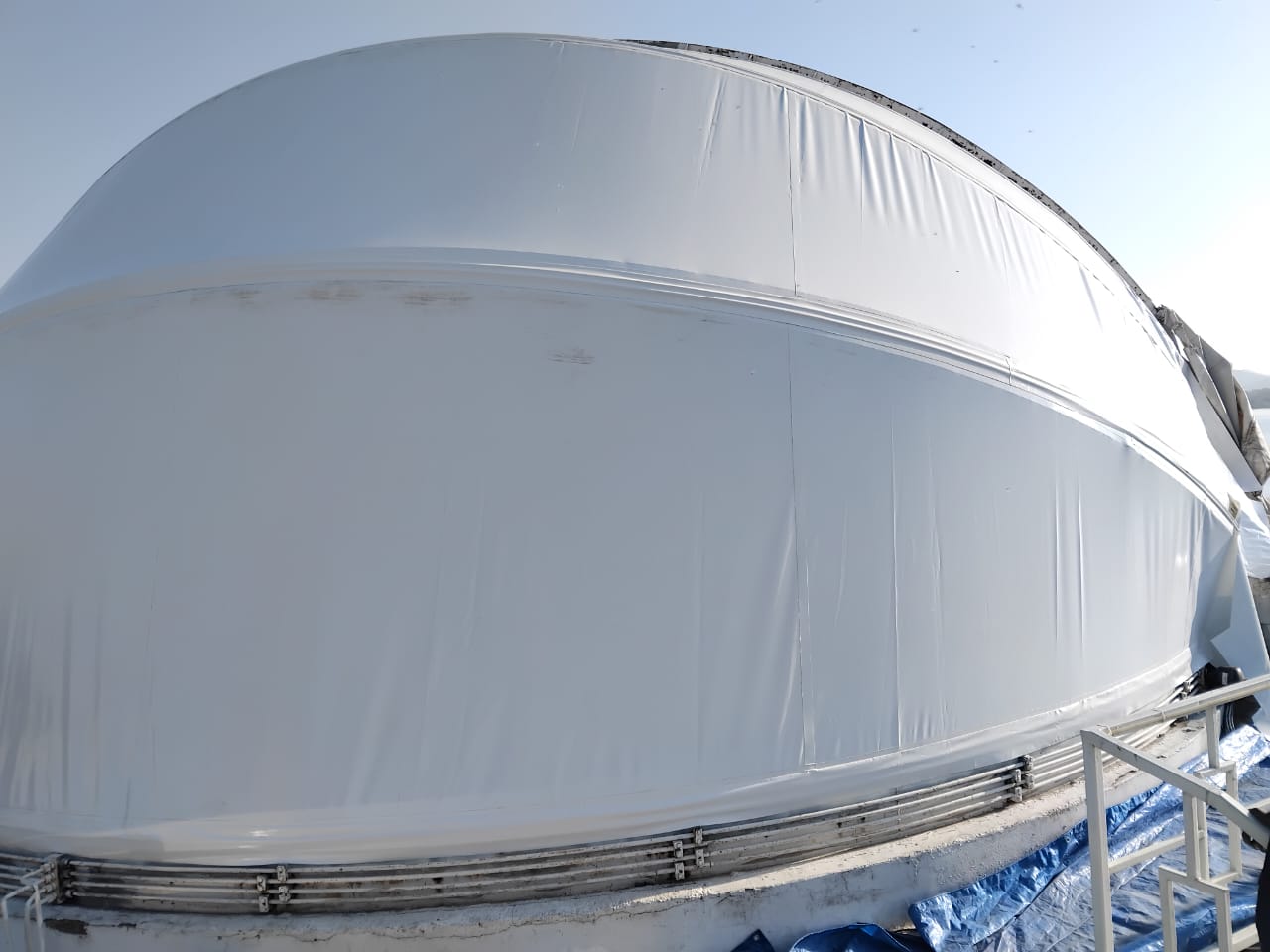

- Weather Sealing: We engineered dual-flange elastomeric seals and welded seams. Because of this, the cover blocks rain, moisture, and dust during harsh monsoon storms.
- Smooth Motion Clearance: We matched the structural ring to the rotating dome radius. Hence, the dome turns smoothly with zero friction along mechanical pathways.
End-to-End Execution

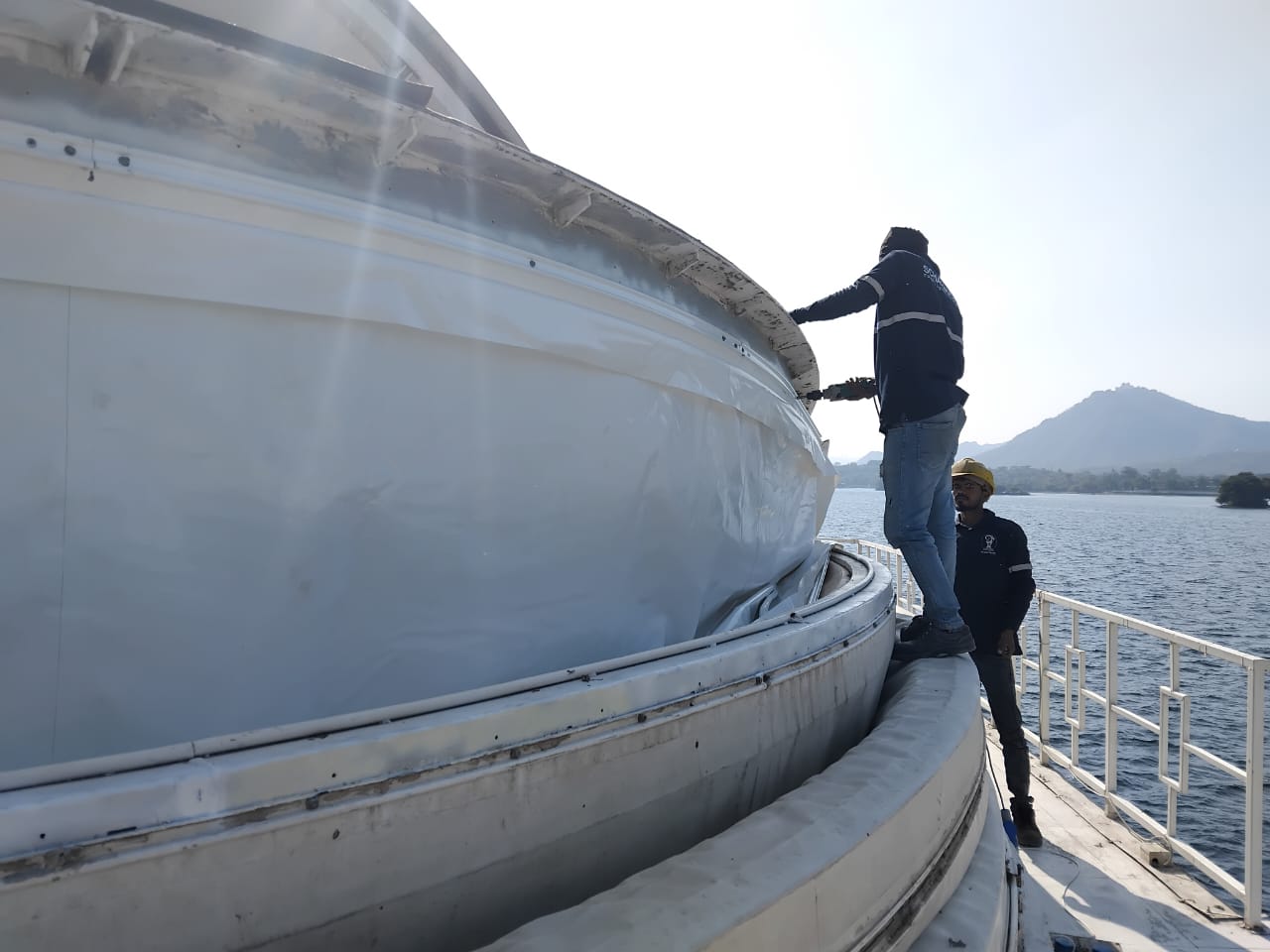

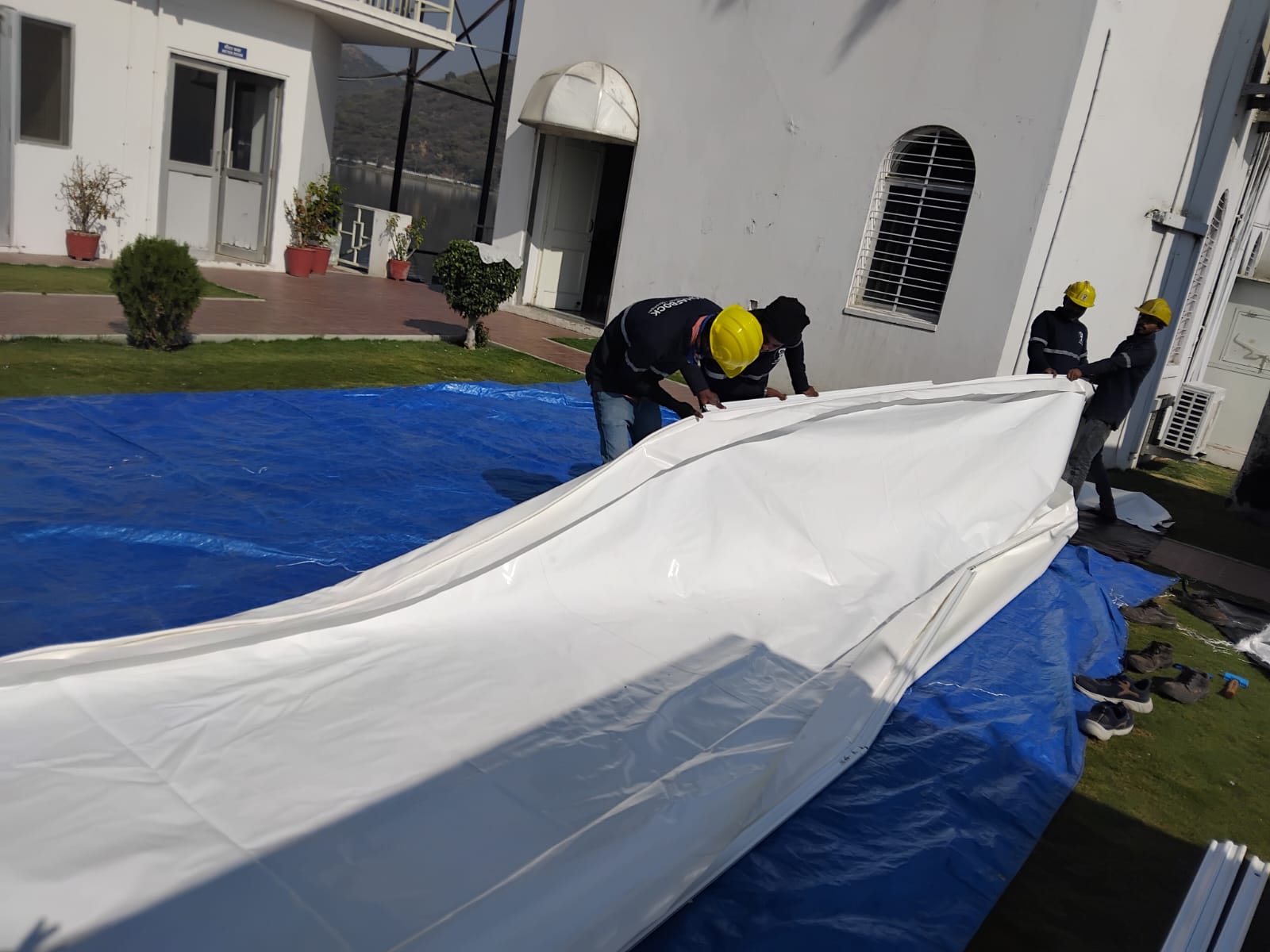

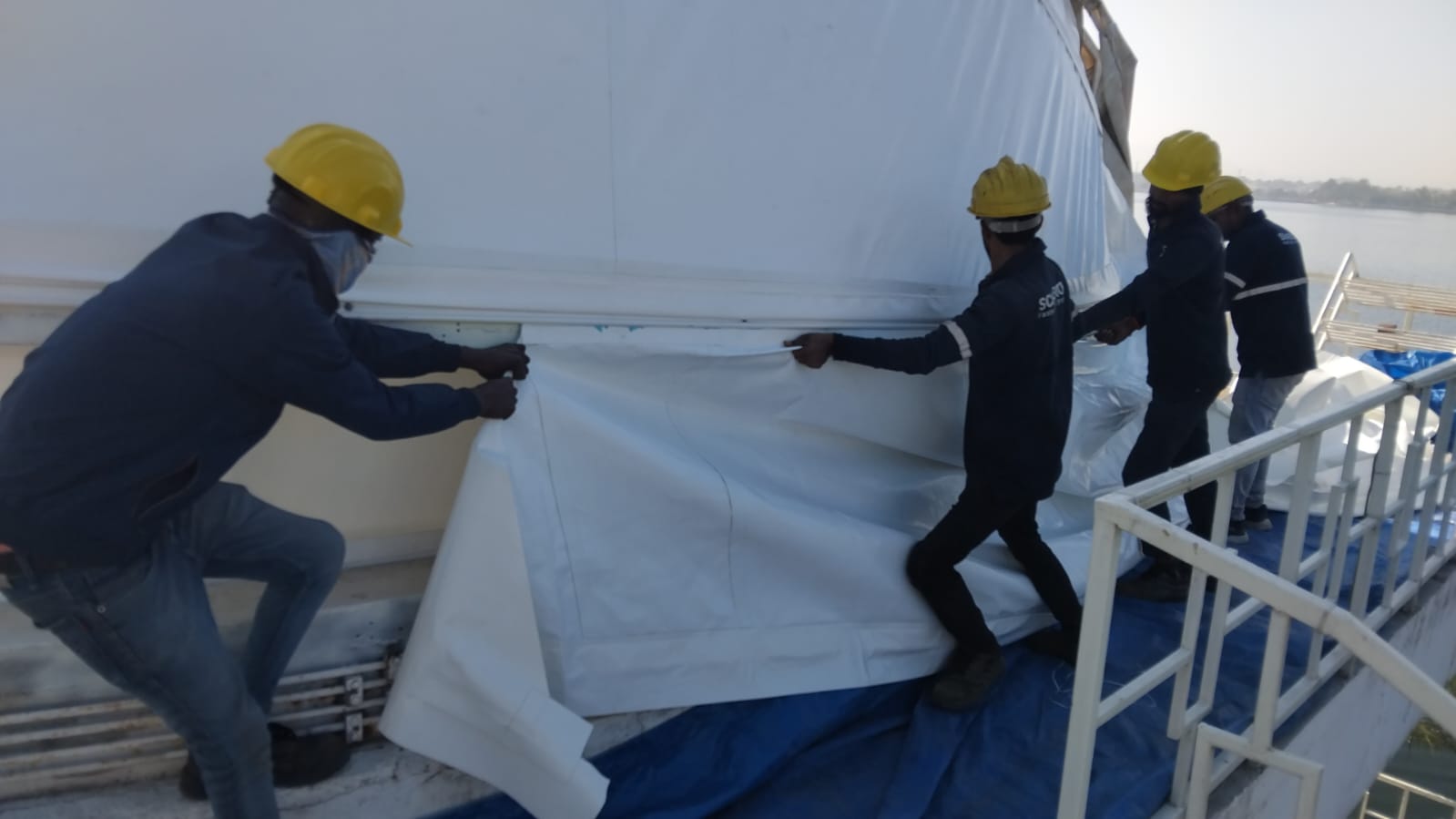

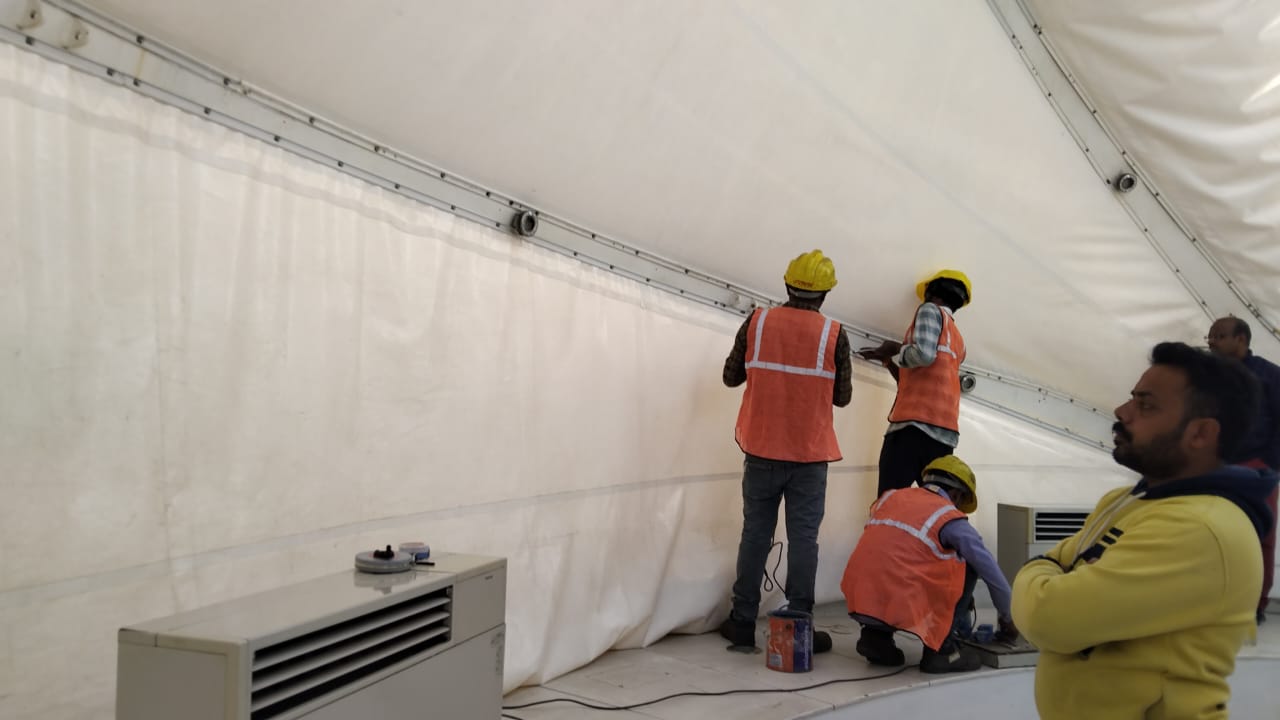

Schafbock managed every phase of this project. First, we conducted digital modeling and CNC patterning. Next, our crew handled precision welding and cleanroom rigging. Furthermore, our installation team worked alongside facility engineers. As a result, we finished on-site assembly with zero downtime for the observatory.
In conclusion, our technical membranes offer durable protection for complex scientific projects. You can explore our tensile fabric canopies & structures to view similar work. Alternatively, review our specialized tensile design & engineering services to see how we tackle bespoke installations across India.
- Project Completion : 18/07/2024
- Client : ISRO Udaipur Observatory
- Location : Udaipur
- Dimensions(L x W) :
- Architect :
