Inverted Umbrella Tensile Structures – CEPT University, Ahmedabad

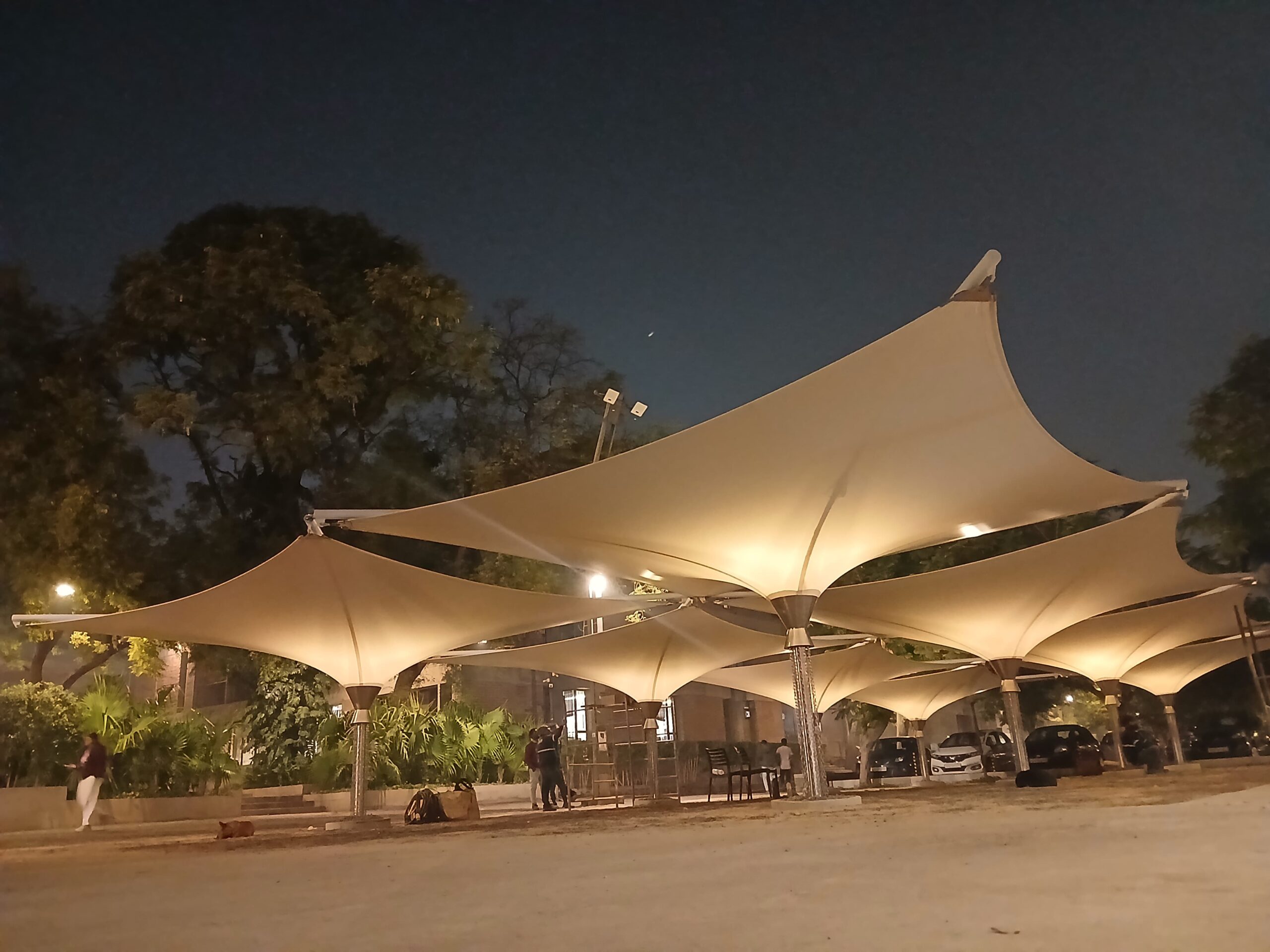

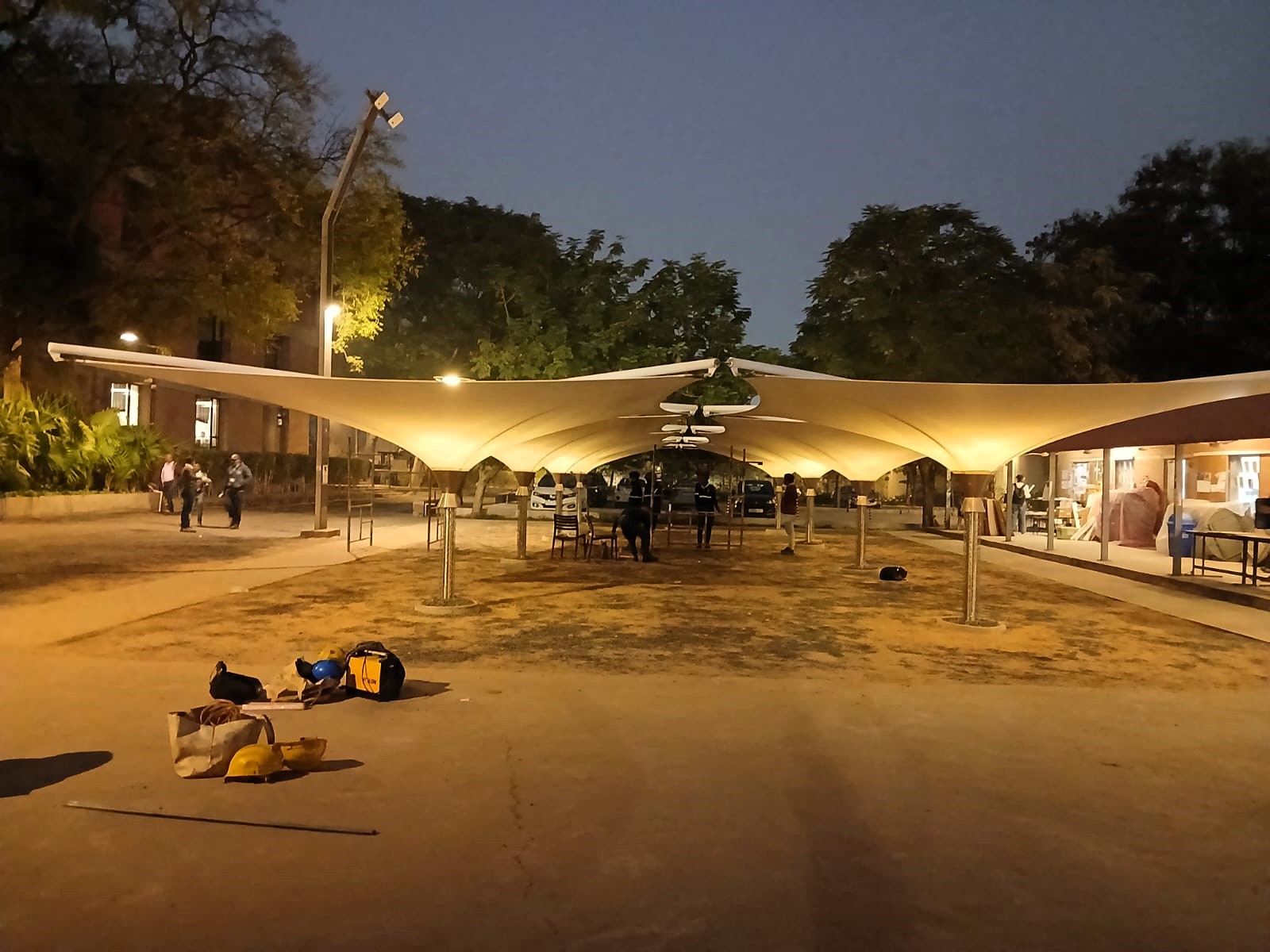

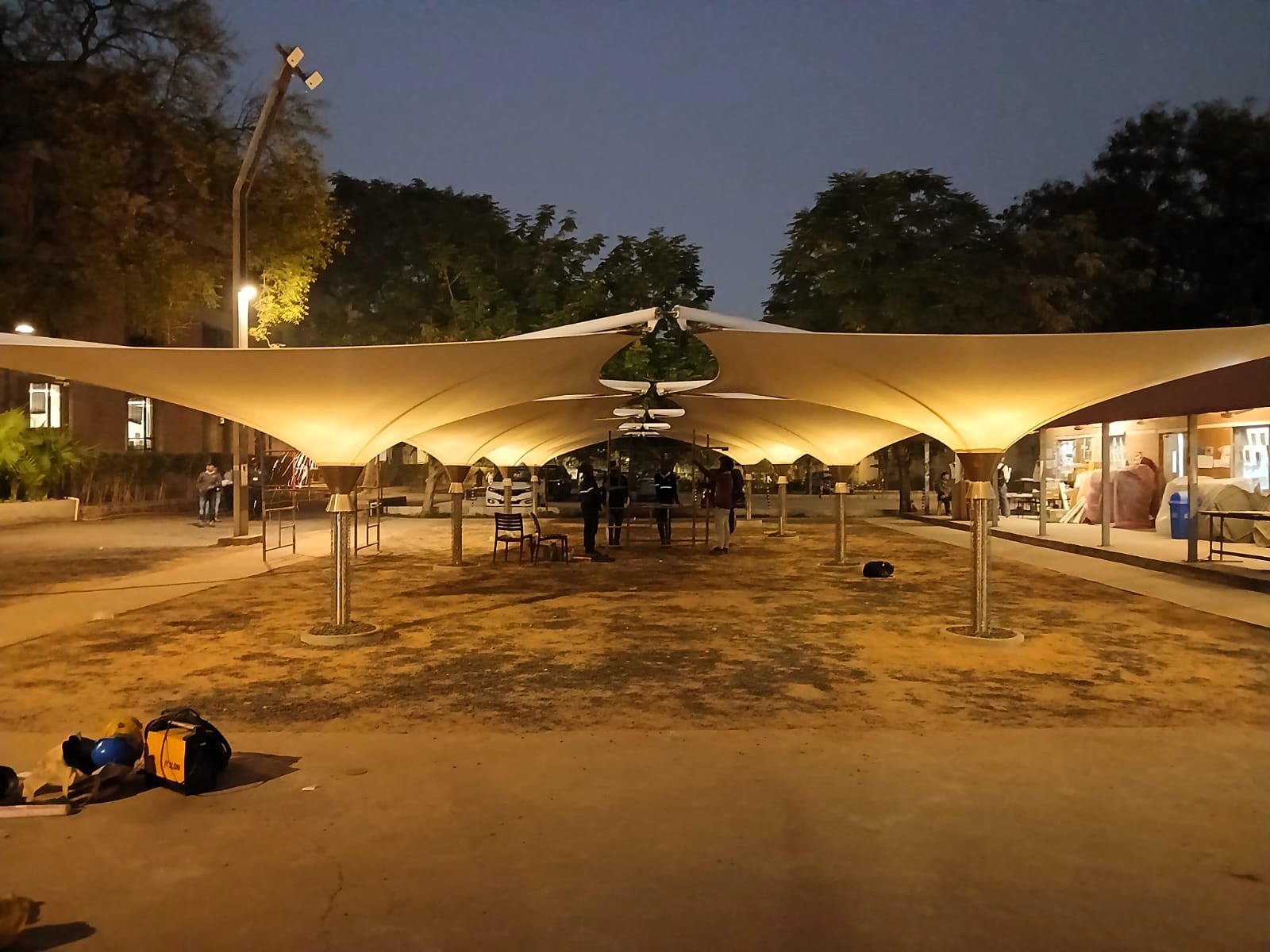

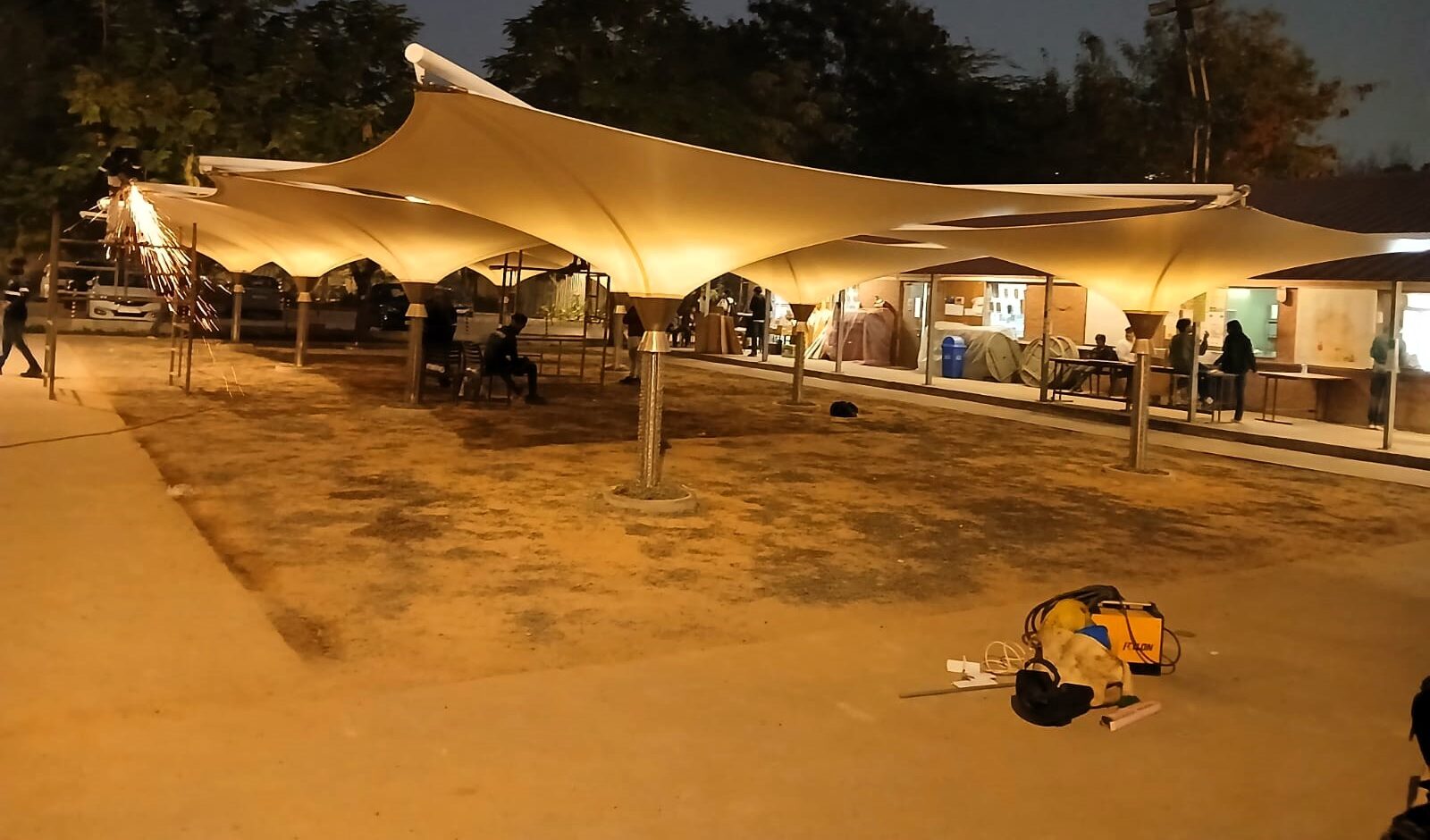

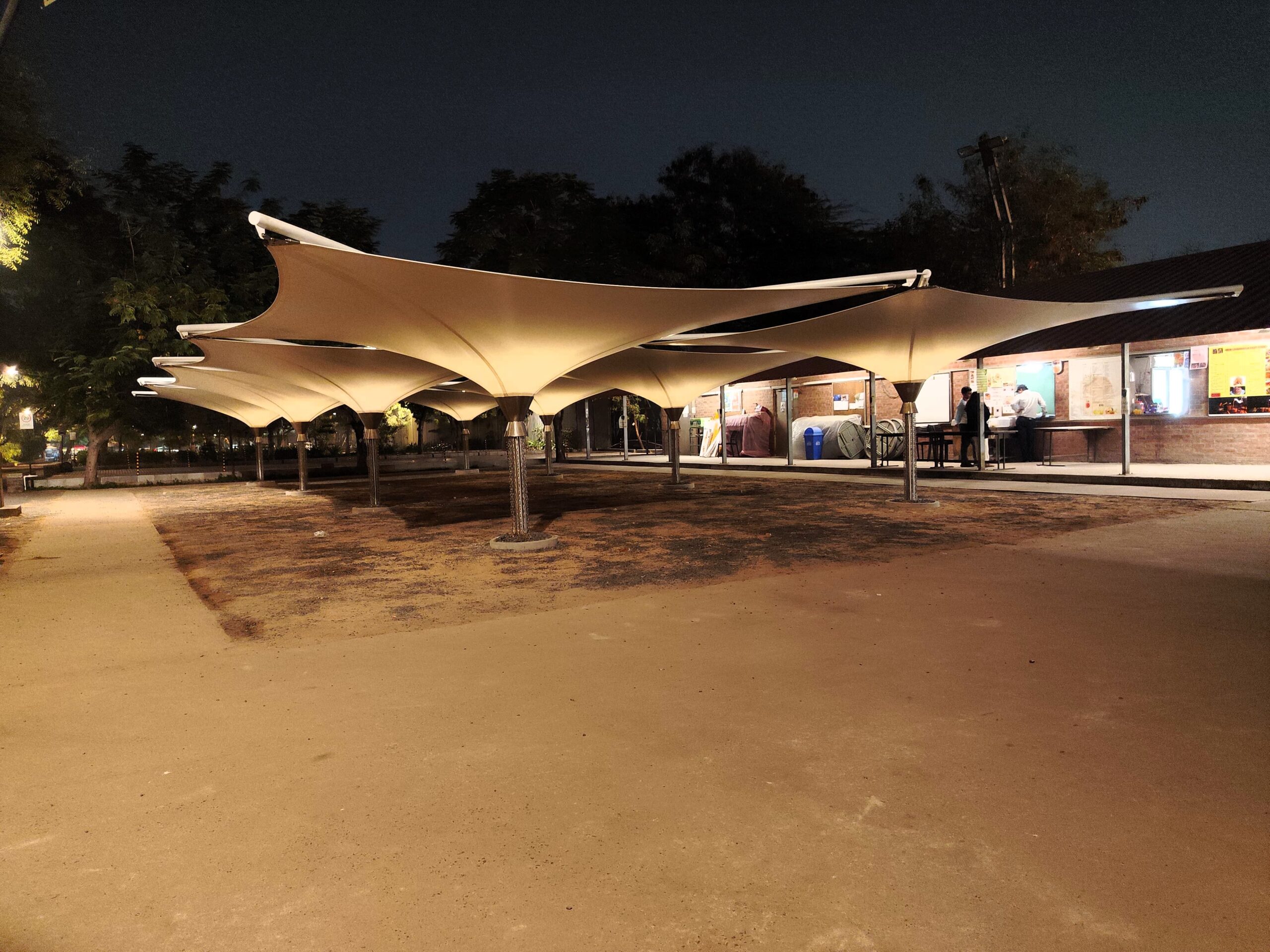

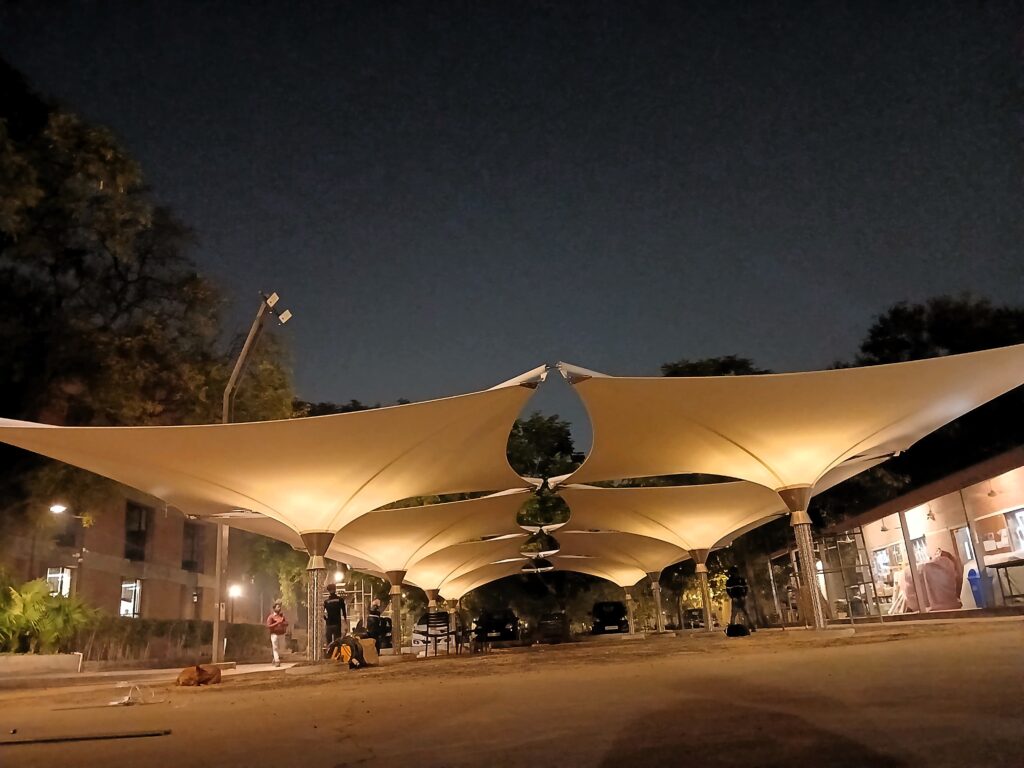

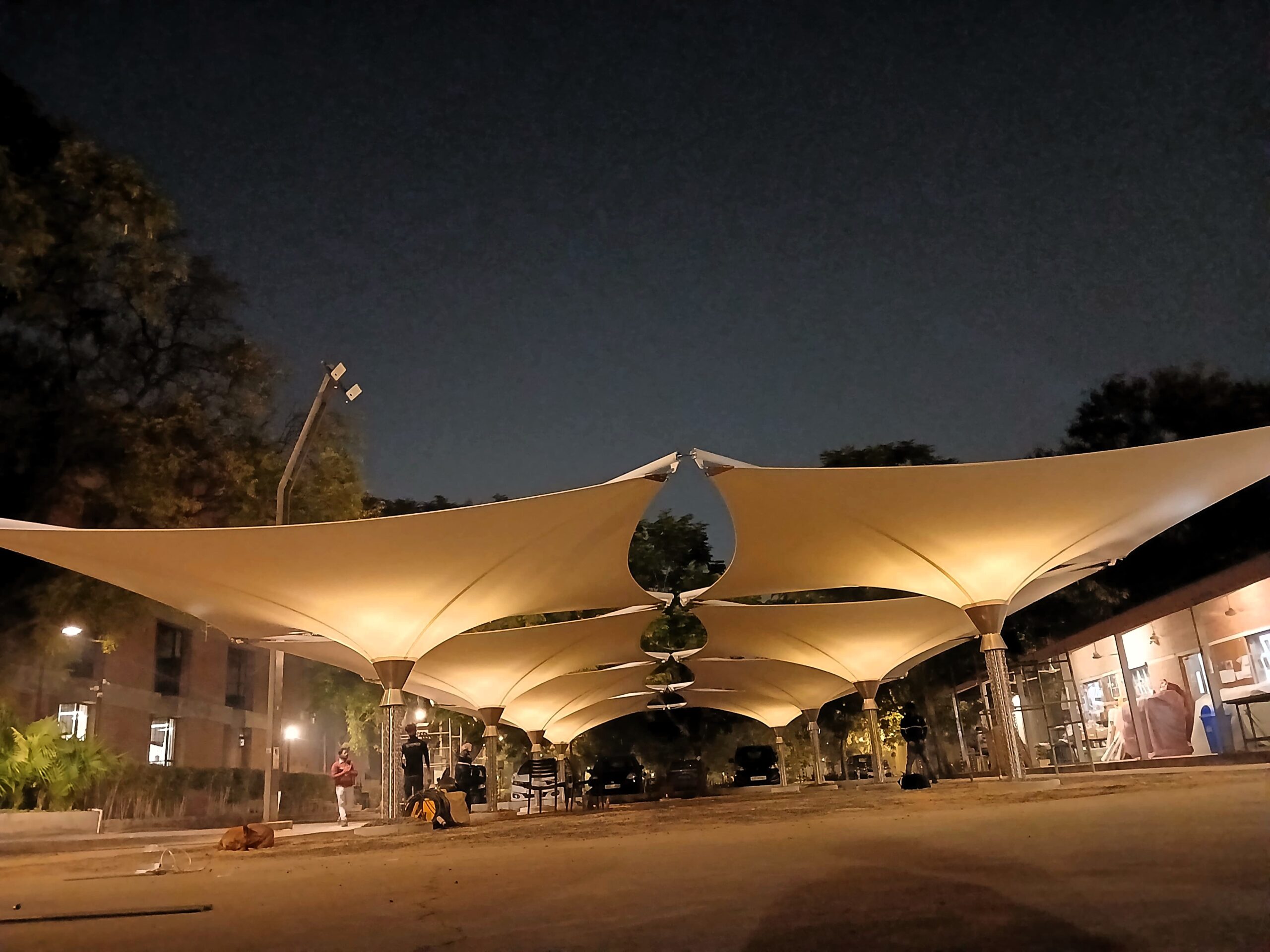

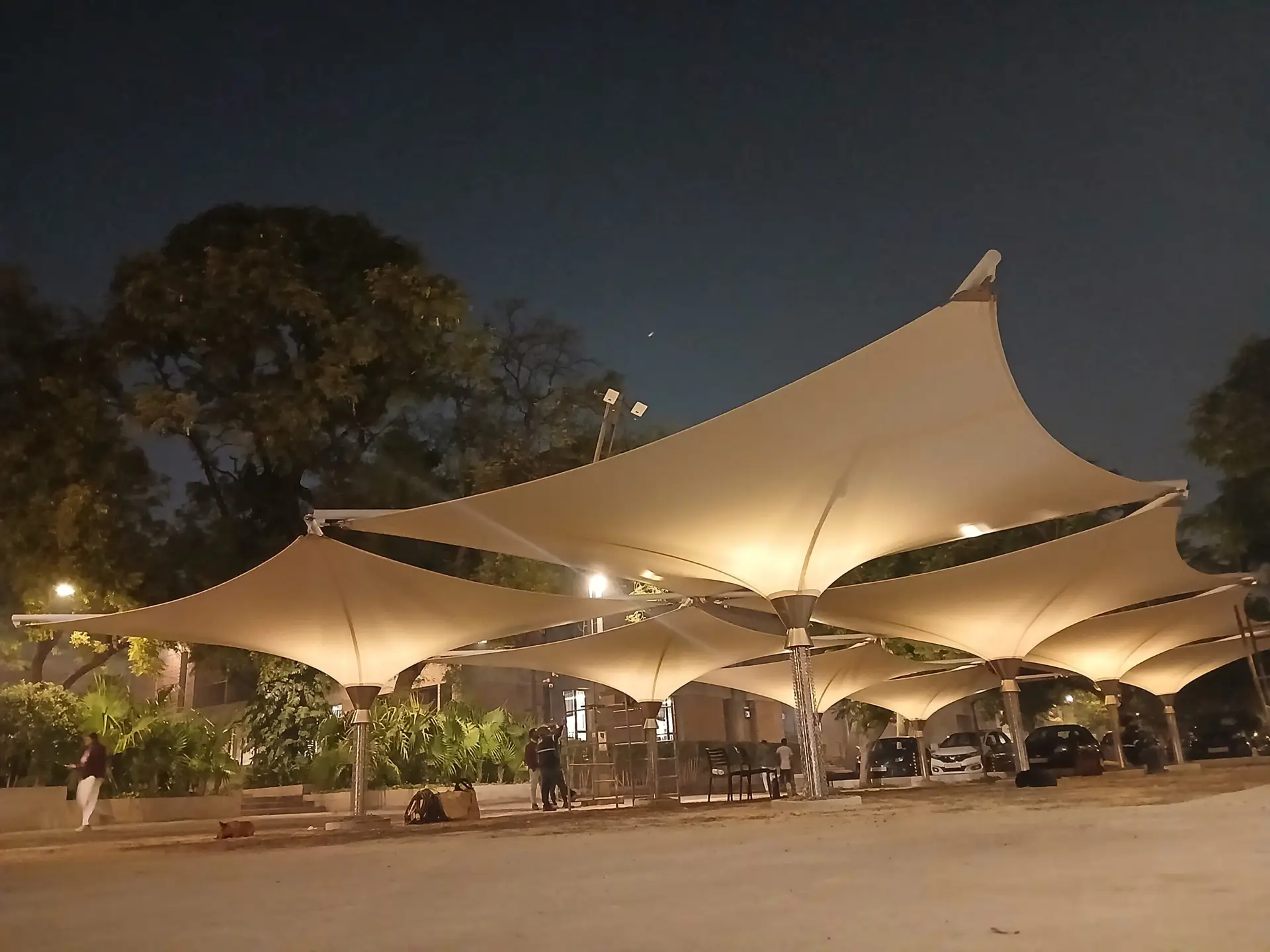

Schafbock Design Workshop installed a custom inverted umbrella tensile structure at the prestigious CEPT University campus in Ahmedabad. This structure provides cool solar shade. In addition, it complements the campus architecture. As a result, students and faculty enjoy a comfortable gathering space outdoors.
Engineering an Inverted Umbrella Tensile Structure
The single-mast inverted umbrella tensile structure uses a strong architectural membrane. This fabric easily resists regional wind loads and extreme summer heat. Furthermore, the high-grade PVDF membrane blocks harmful UV rays. Therefore, courtyard temperatures remain cooler throughout the day.
Most shade canopies shed water outward along their edges. In contrast, an inverted umbrella design channels rainwater centrally toward the main mast. The internal drainage pipe routes water down through the base into campus drain lines. Consequently, ground areas stay dry and free from uncontrolled splashing during monsoons.
Key Features of the Tensile Structure
- Structure Type: Modular inverted umbrella tensile structure
- Membrane Specification: High-tensile, UV-resistant PVDF architectural fabric
- Steel Framework: Corrosion-resistant structural steel with protective powder coating
- Functional Benefits: Central internal drainage and high ambient daylight transmission
We manage every stage from 3D form-finding to site installation. You can explore our other tensile fabric canopies & structures to view similar campus designs. Alternatively, visit our contact page to discuss custom architectural shade solutions for your next project.
- Project Completion : 13/06/2024
- Client : CEPT University
- Location : Ahmedabad
- Dimensions(L x W) :
- Architect :
